Ariel Square Four Oil Gauge Kit (White Panel Instrument)

Oil pressure gauge kit suitable for Ariel Square Four

Description:

-Double scale gauge: 0 to 6 bar or 0 to 85 psi.

-Mounting on handle bar (handle bar diameter 22mm).

-Connection on the engine is done by replacing the oil feed stud (part no 5178-37) with a new longer stud (thread 3/8 26TPI BSCY)

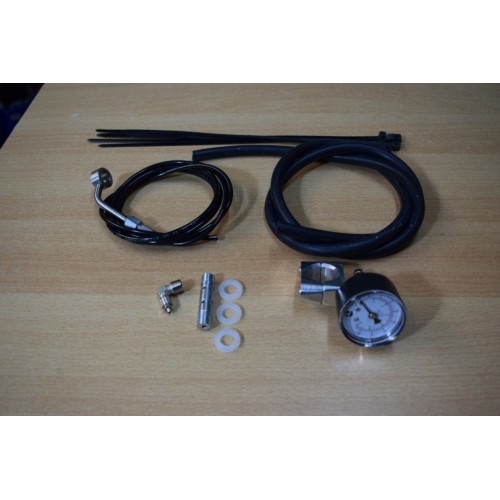

The kit contains

1)    One oil gauge of 40mm diameter with handle bar mounting bracket and connector to  4mm oil line.

2)    Extra 4mm connector with 90º angle.

3) One and a half meters of plastic oil line of 4mm diameter black color.

4) One meter of rubber line for the protection of the plastic line.

5) New longer stud (replacement for the 5178-37 part)

6) Three nylon washers

7) Stainless steel banjo

8)  5 tie wraps to secure the oil line

9) Installation instructions
